รายละเอียดสินค้า:
|
| คําสําคัญ: | ผ้าเคลือบซิลิโคน | ลักษณะ: | ความแข็งแรงสูงความยืดหยุ่นดีทนทาน |
|---|---|---|---|
| ต้านทานความชรา: | ดี | ชนิดเส้นด้าย: | อี-กลาส |
| ฐาน: | ผ้าใยแก้ว | แอปพลิเคชัน: | ฉนวนกันความร้อน, กันไฟ, การป้องกันการเชื่อม |
| สไตล์สาน: | ธรรมดาสิ่งทอลายทแยงคราบ | อุณหภูมิการทํางาน: | -40-200 องศา Centigrade |
| เน้น: | Duct Flexible Connector Fiberglass Fabric,Flexible Connector Fiberglass Fabric,1.5mm Silicone Coated Fiberglass Fabric |
||

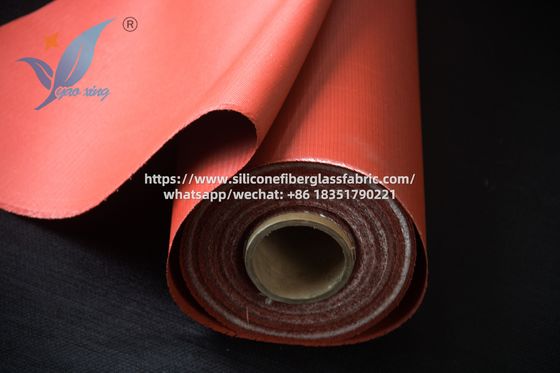

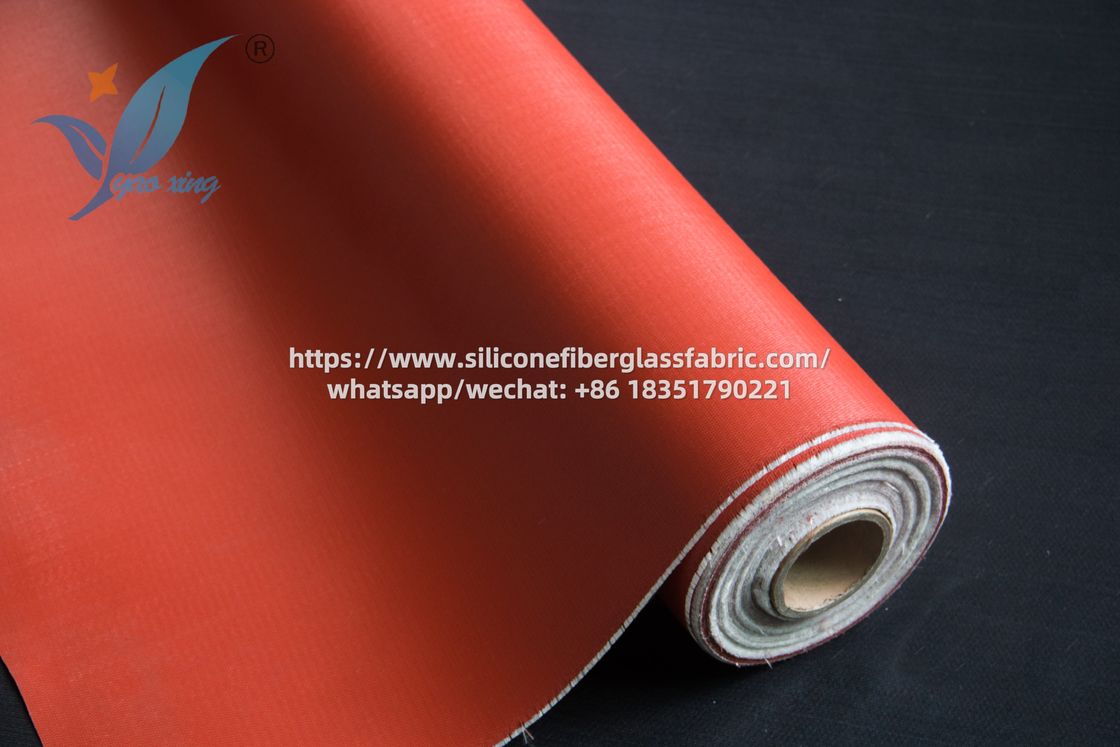

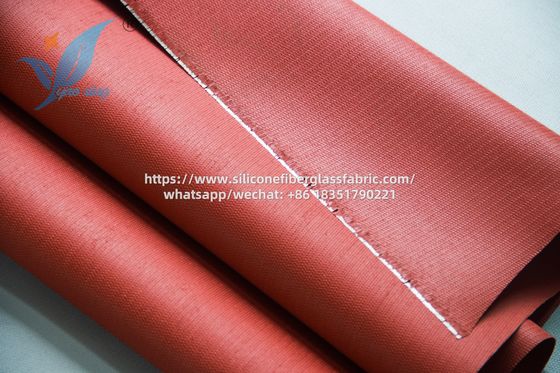

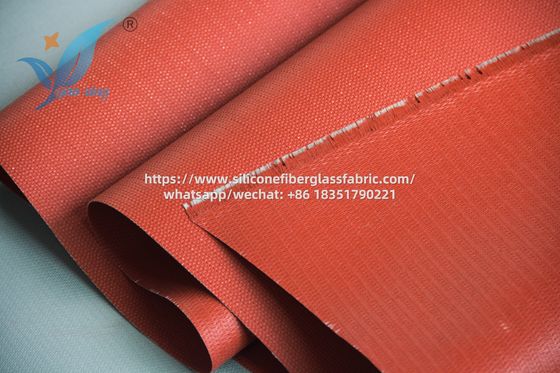

1.5mm Silicone Coated Fiberglass Fabric For Duct Flexible Connectors
1. Scope of application
Silicone rubber is a type of fluorine macromolecule with elastic properties, offering high-temperature resistance, insulation and long-term ageing resistance. When compounded with fibreglass, it becomes a highly functional and useful new material.
2. Specification with Silicone coated fabric
| Type | Thickness | Breaking Strength (N/50mm) | Burst Strength Mpa | Peeling Strength N/m | Flame Retardant | Weight g/m2 | |
| warp | weft | ||||||
| SRC-0.3 | 0.30+0.03 | ≥1800 | ≥1400 | ≥1.2 | ≥450 | FV-0 | 470+50 |
| SRC-0.5 | 0.50+0.05 | ≥2000 | ≥1600 | ≥2.0 | ≥450 | FV-0 | 640+60 |
| SRC-1.1 | 1.10+0.10 | ≥3800 | ≥3400 | ≥2.6 | ≥450 | / | 1700+170 |
| SRC-1.5 | 1.50+0.10 | ≥3200 | ≥2800 | ≥3.0 | ≥450 | / | 2300+230 |
3. Characteristics of 260°C Silicone-Coated Fabric
Silicone-coated fibreglass fabric has special characteristics, such as high-temperature resistance, ventilation resistance and fine high-temperature resistance. Silicone-coated fibreglass fabric is also very soft and tenacious, so it can be used in the fields of aerospace, chemistry, large electrical equipment, machinery and metallurgy.
4. Storage and transport
Store in an environment with a temperature between 0 and 40°C and a humidity greater than 75%. Keep away from heat sources. Avoid contact with acid, alkali and other materials that are harmful to rubber. During transportation, prevent extrusion.
5. The colour of silicone-coated fabric
Red, silver grey and black. Production can be tailored to specific customer requests.
6. Packing of silicone-coated fabric
50 m/roll, packed in a PVC bag.
